Ex Council CAT 432F 4WD Backhoe Loader 4 Speed Power Shift, with only 3786hrs, Powered by ACERT C4.4 4Cyl CAT Badged 4.4L Perkins Engine, Rear Fitted with Hydraulic Power Assist Side Shift , Burst Valves on all Lift Cylinders, 16ft Extendahoe, Manual Rear Hitch, Air Suspension Seat, Pilot ISO/SAE Selectable Control Joysticks, Fitted with Ride Control, A/C & Heated Cabin, Non Ad Blue, Battery Isolator, Amber Beacon,  Excellent Rubber All Round, $82k+Gst Includes a 450mm GP &1200mm Mud Bucket, Operators & Maintenance Manual, New Grill, Latch & Front Bumper Stoppers - One Owner Unit is straight from work from a Inland Southern NSW Shire Council. New Paint and Decals.  Please see Photos of before and After  - This is of the Same Machine before,

Hydraulic System
Load-sensing, closed-center system.
Variable-flow, closed-center load-sensing system provides full
hydraulic force to cutting edges at all engine speeds. Provides low
fuel consumption and low effort controls.

2013 CATERPILLAR 432F BACKHOE Ride Control Power Side Shift

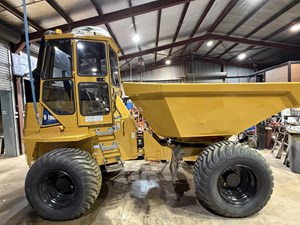

2ea x Thwaites 9T Site Dumpers available, 1ea Fitted with Roof Top Viesa Evaporative Cooler, Both Units Fitted with Enclosed Cabs, 4 Speed Power Shift , Powered by 4.4L 1104D-44TA Perkins Turbo Diesel , water-cooled, Power Swivel skip enables a 180° rotation $46k+Gst each, 2012 Unit Showing 2686hrs / 2013 showing 3091hrs, Unit with New Paint has Sold

2013 THWAITES 9 TONNE

CAT CS563E 12T Smooth Drum Roller Dual Amplitude Drum Width 2,134mm 2 Speed,Powered by a 150Hp Turbo Charged CAT 3056E Engine ,Replacement SMU Showing 1237hrs + Service SMU Replacemnt Sticker showing 3767hrs Totalling 5004hrs $64k+Gst Unit will Include a Genine CAT Filter Service Kit & Hard Copy Operators & Maintenance Manual

2005 CATERPILLAR CS563E

CAT 312D 12T Excavator, Fitted with CAT Quick Hitch, 1800mm Mud Bucket, 3000mm Long Stick, Reverse Camera, New Engine Mounts, Good Tracks, Recently had New Swivel Seals Fitted, New Alt Belt, $56.4k+Gst Includes Operators Manual & Genuine CAT Filter Service Kit

2012 CATERPILLAR 312D LONG STICK

CAT 140M Road Grader 14 Foot Blade With Rippers JoyStick Control, 8 Speed Power Shift, Air Suspension Seat, Fitted with Reverse Camera, Turbo Timer, E/Stop, Front & Rear LED Amber Beacons, 4 Pole Battery Isolator, also TOPCON Harness , Laser Pole, Rear Ripper Attachment with Full Set of Rippers and Scarifiers, Front Push Block, $135k+Gst Includes Operators & Maintenance Manual, Also Available Coming Soon CAT 120M AWD

2009 CATERPILLAR 140M

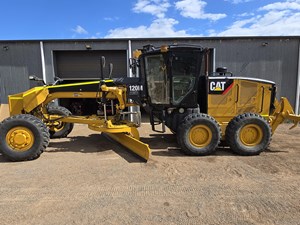

CATERPILLAR 120M AWD Road Grader - Service History Available
$142k+Gst Will Include New RHS Door Glass, New P/Brake Switch & Operators & Maintenace manual
120M AWD MOTOR GRADER, D9W00117
2333137 FAN, DEFROSTER, REAR WINDOW
2333142 GLOBAL ARRANGEMENT
2356188 PRODUCT LINK, PL321
2388763 SWITCH, WORK LIGHTING
2425057 HYDRAULICS, BASE &AMP; 1 FUNCTION
2436702 BLADE, 12' X 24"
2466097 LINES,STANDARD W/O ACCUMULATOR
2486925 TRANSMISSION, AUTOSHIFT
2503071 PUSH PLATE, COUNTERWEIGHT
2534626 DRAWBAR, 4 SHOE CIRCLE GUIDES
2606125 COMPRESSOR/TANK, AIR
2641525 PUMP, HYDRAULIC,HIGH CAPACITY
2664296 SHADE, SUN
2690477 RIPPER-SCARIFIER, REAR
2815636 TANK, FUEL, STANDARD
3001873 WINDOWS, SIDES W/WIPER & REAR
3109291 MIRRORS, OUTSIDE MOUNTED FLAT
3153296 AUSTRALIAN ARRANGEMENT
3000 TRANSMISSION AND DRIVE LINE, CZM03778
1000 ENGINE, C6E15217

2009 CATERPILLAR 120M AWD

CATERPILLAR THP18S 1800MM Basket Platform Arrangement Suit CAT TELEHANDLER, Suit Modesl TH414 TH514 TH417.
$12k+Gst Unit includes 2ea x Fall Prevention Safety Harness's .

2010 CATERPILLAR THP18S Attachment

Ex Rail Trailer Mounted 8.6KVA 240Vac Commercial Grade Silenced Generator Powered by 3 Cyl Mitsubishi Diesel with only 1704 Hours,
Fitted with 10Kva 240v to 110vac  Transformer

$9,100+Gst Will include a New Start Battery

KVA: 8.6 Kva
Volts 240 Volts AC
Hz 50.
Phase: Single Phase

Distribution Box fitted with: Circuit Breakers, GPO, Isolation and Selector Switch
Aux Outlet: 120v


8.6KVA Silenced DIESEL Genset Includes:

1. Tandem Trailer, Standard 50mm Tow Hitch, Manual Override Brakes, Standard 7Pin Flat Trailer Plug  with Spare Tyre, (Unused) Trailer Bed Dimensions 2540mm Long x 1320mm Wide, Overall Trailer Length 4100mm. Fitted with Spare Jerry Can Holders, Genset has its own Build in Fuel Tank.

2. Distribution / Isolation / CB mounted in Standard Size Meter Box.

3. Cables including 28 meters x 10mm2 2 Core+Earth H/Duty Quality  Cable fitted with 32AMP Heavy Duty Plug and J Box,

4. Copper Earth Stake and Cable

5. 20m x of 6mm2 2Core+Earth Cabe fitted with H/Duty 32 Amp Male Weather Proof Plug at Generator End and Standard 15Amp Female Outlet Receptacle Weather Proof Plug at other End.

6. Solar Panel fitted with 12vdc Solar Panel to keep Generator Start Battery Topped Up.

7. Unit also fitted with 10Kva 240 /120v Transformer mounted in a H/Duty Galvanized Enclosure , Can be removed or Isolated.

Transport Can be arranged at Reasonable Rates Nation Wide

SDMO Gensets are Made in FRANCE and are Owned by KOHLER, KOHLER SDMO are one of the Top Global Manufactures of Generators,
SDMO KOHLER are Supported by CAPS Australia,

2007 SDMO MITSUBISHI T9KM -4 240V 8.6 KVA SINGLE PHASE + INCLUDES MODULAR 10KVA 110V TRANSFORMER FOR RAIL POWER SUPPLY Series 4

AMMANN AV16-2 1.6T Double Smooth Drum Roller Powered by YANMAR 3TNV76-N Diesel $20k+Gst Includes Operators & Maitenance Manual

2006 AMMANN AV16-2 Series 2

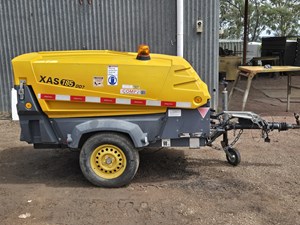

Atlas Copco XAS185 DD7 Rotary Screw Compressor 185 Cfm 1620hrs, Unit Trailer Mounted, Fitted with Both Battery & Start Isolators, Rotating Beacon On with Operation, Unit has Just been Serviced Using Genuine  Atlas Copco Filters, New Engine Oil, $16k+Gst Unit will Also Include a New Battery Fitted, Includes Hard Copy Operators & Maintenance Manual, Original Paint, Also New Compressors Available as Well, Tax Invoice with All Serial Numbers Issued with Purchase

2009 ATLAS COPCO XAS185 DD7 DD7

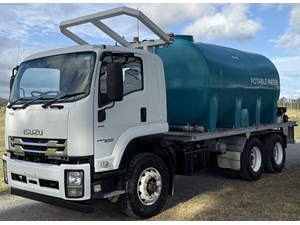

2018 ISUZU FVZ 260 300 AUTO WATER TRUCK Allison 6 Speed Auto 102,000km $140k + no Gst) fitted with 13,000L Rapid Spray Water Trcuk Fitted with YANMAR Diesel Water Pump,
ALLISON 3500 SERIES (auto model)
6 speed automatic. 5th generation electronic controls with adaptive shift.
Allison long life TranSynd synthetic fluid.
LHS and top PTO openings on transmission bellhousing. Engine driven PTO
drive gear.
Gear ratios (:1)
1st 2nd 3rd 4th 5th 6th Rev
4.59 2.25 1.54 1.00 0.75 0.65 5.00
AXLES
Front: MERITOR
FG941 reverse Elliot I-beam. 6,600 kg capacity.
Rear: MERITOR
MT40-144GP (manual model), MT44-144GP (auto model). Tandem axle set,
20,000 kg capacity.
Driver controlled inter-axle lock and cross locks on both axles.
Drive ratio: 6.142:1 (manual model), 6.428:1 (auto model)
SUSPENSION
Front:
Single stage alloy steel taper-leaf springs.
Double acting hydraulic shock absorbers. Stabiliser bar.
Rear (FVZ 260-300):
Multi-leaf springs with Isuzu 6 rod and trunnion location system.
Rear (FVY 240-300):
Hendrickson HAS460 airbag. 18,100 kg capacity at ground.
Outboard mounted double acting shock absorbers.
BRAKES
Meritor Q-Plus dual circuit full air S-cam front and rear drum brakes with
auto slack adjusters.
ABS.
Hill Start Aid (HSA) - except auto models.
Front drum size: 419 x 127 mm
Rear drum size: 419 x 178 mm
Spring park brake acting on all rear wheels.
Air controlled exhaust brake.
Air dryer.
STEERING
Power assisted recirculating ball steering.
Gear ratio: 22.4:1
Turns lock to lock: 5.4
Maximum angle: 45° (inside wheel) / 35° (outside wheel)
WHEELS AND TYRES
22.5 x 8.25 ten stud ISO standard steel wheels.
Steer axle: 295/80R22.5 152/148M Michelin X Multi Z Tubeless.
Drive axle: 11R22.5 148/145L Michelin X Multi D Tubeless.
Maximum tyre rating:
Steer axle: 7,100 kg
Tandem drive axle set: 23,200 kg
Spare wheel and X Multi Z tyre assembly. Winch type carrier (except
FVZ medium).
CHASSIS FRAME
Cold rivetted ladder frame with parallel side rails.
Frame sidemember material:
MWB / MLWB: HT540A, LWB: SAPH440
Frame dimensions:
MWB / MLWB:
Side rail (mm): 254x85x8.0, Rear frame width (mm): 850
LWB:
Side rail (mm): 258x85x10, Rear frame width (mm): 850
6HK1 - TCS
Power: 221 kW @ 2,400 RPM
Torque: 981 Nm @ 1,450 RPM
FVZ 26O-3OO 6X4
FVY 24O-3OO 6X4
FVZ 260-300/FVY 240-300 - ARK1390 01/21
FUEL TANK
Frame mounted fuel tank. 200L steel (FVZ MWB / FVZ AUTO / FVY AUTO),
400L aluminium (FVZ LONG / FVY LWB with manual transmission).
Lockable fuel cap.
ELECTRICAL SYSTEM
24 volt electrical system.
90 amp alternator.
24 volt, 5.0 kW starter motor.
2 x 115E41L (651 CCA) batteries connected in series.
Underdash CAN interface unit and connector. SAE J1939 protocol.
Facilitates connection to a Fleet Management System (FMS) (not supplied)
CAB EXTERIOR
All steel construction with electro-hydraulic cab tilt. High tensile steel used
for cab underframe.
Complies with ECE-R29 cab strength standard.
Full floating cab with coil spring suspension and hydraulic shock absorbers.
Heavy duty non slip entry steps.
90° opening internally reinforced front doors.
Water spray suppression guards and front mudflaps.
Laminated windscreen with shade band.
Two speed windscreen wipers, with intermittent wipe mode.
Halogen multi-reflector headlamps incorporating turn signals and front
foglamps. Additional door mounted side indicator lamps.
Combination brake, turn, reverse and marker lamps, registration plate
illumination lamps. Extended wiring harness. Reverse alarm.
Roof-mounted clearance lamps.
Heated and powered exterior main mirrors with flat glass and additional
powered convex spot mirrors.
Chrome grille.
Body coloured steel air dam bumper with side cornering lamps.
FUPD underun bar - complies with ECE-R93.
CAB INTERIOR
Isri 6860 air suspension drivers seat with pneumatic lumbar support,
height, rake and automatic weight adjustment.
Additional Comments (will appear on 3rd party websites)

2018 ISUZU FVZ 260 300 FVZ AUTO 260 300

2015 JCB 525-60 Hi Viz 2.5T 6m TELEHANDLER, Fitted with 55Kw 74Hp 4 Cyl Turbo Inter Cooled DIESEL JCB/KOHLER Engine 310Nm of Torque at 1500Rpm , Auxillary Hydraulics, A/C Cab, Electric Finger Paddle P/Brake, $53k+Gst Fitted with a New Set of HIMAC 2.5T Pallet Forks. Unit Runs Very Well & Quick around the Yard , Unit will Include 2ea x New Front Tyres. Unit Weighs 5,230Kg
JCB 525-60 Hi Viz Park Brake is SAHR (Spring Apply Hydraulic Release Park brake self adjusting, oil immersed in-board multi disc type mounted on front axle operated by in-cab switch

2015 JCB 525-60 Hi Viz
