CAT 432E Premier Pilot Control Front Wheel Assist Backhoe Loader with Extendahoe Power Hydraulic Side Shift , Front CAT 4in1 MultiPurpose Bucket , Air Suspension Seat, ISO SAE Selectable Joystick Patten, New Paint & Decals, $54k+Gst Unit will be either Supplier Fully Serviced With New Engine Oil & Final Drive Oils or with a Genuine CAT Filter Service Kit, Unit is fitted with a CAT Factory Spring Lock Coupler & CAT 600mm GP Bucket with Teeth
Other Attachments Available at Discounted Rates with machine Package
Pilot Operated Joystick Controls
Standard on the 432E, Pilot controls reduce fatigue, improve visibility and increase versatility.
Joystick Controls
Excavator style joystick controls provide smooth modulation
and are ergonomically designed for low effort control and
operator comfort. The location of the controls naturally
position the operator comfortably into the back of the seat.
The loader joystick features optional multi function controls
and the RH hoe joystick features a thumb operated extendable
stick control, eliminating pedals on the floor.
Excavator Control Pattern Changer
The 432E has an in-cab backhoe pattern changer as standard,
allowing operators to choose between either ISO, or SAE
control patterns.
This is located within reach of the operator, ensuring the 432E
will suit either type of backhoe operation.
Stabilizer Controls
Pilot operated, remote stabilizer controls are available with
optional Auto-Up feature, reducing cycle times and improving
visibility to the rear.
Multi Position Joystick Pods
The joysticks are pod-mounted, allowing two locked positions,
fore and aft for the controls. This allows the operator to move
forward when excavating close to the rear of the machine,
and have a clear view to the trench.
Visibility With no rear console impeding vision, the operator has an
unobstructed view to the working area.
Unit Standard Features Fully enclosed, hydraulic, multiple discs Inboard oil immersed, hydraulically actuated multiple Kevlar discs on final drive input shaft. Completely enclosed and sealed. Self adjusting. Foot operated dual pedals can be interlocked for roading. Parking/secondary brakes areindependent of the service brakes.Parking brake is mechanically applied through a hand lever in the right hand side console. Meets ISO 3450:1996 r

2007 CATERPILLAR 432E PREMIER Premier with Pilot Controls with Power Hydraulic Side Shift

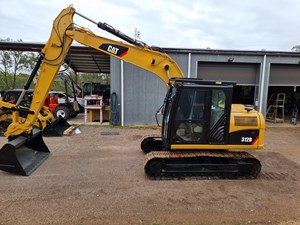

CAT 312D 12T Excavator, Fitted with CAT Quick Hitch, 1800mm Mud Bucket, 3000mm Long Stick, Reverse Camera, New Engine Mounts, Good Tracks, Recently had New Swivel Seals Fitted, New Alt Belt, $57k+Gst Includes Operators Manual & Genuine CAT Filter Service Kit

2012 CATERPILLAR 312D LONG STICK

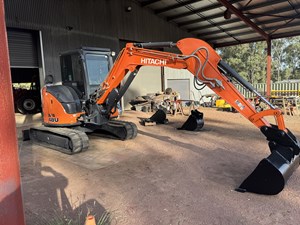

2019 HITACHI ZAXIS ZX48U-5A 5T Excavator (Sold Brand New in 2020) WedgeLock Hydraulic Quick Hitch, A/C Cab, Twin Auxillary Hydraulics, Includes 1200mm Mud, 450mm & 600mm GP Bucket, Includes Operators Manual,  $46k+Gst Unit Includes a Genuine Hitachi Filter Service Kit & also includes 2ea x New Genuine HITACHI Drive Sprockets, Unit also includes Alloy Vandal Covers for the Front Window & Side Cabin Door, Unit Presents well and Well Looked after marchine

Other Attachments Such as DIGGA Auger Packages, Hydraulic Grabs available at Discounted Prices with Machine Package,

2019 HITACHI ZX48U-5A ZAXIS

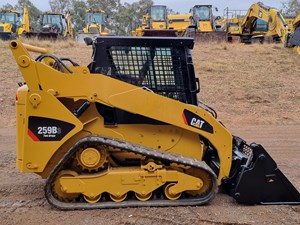

2012 CAT 259B3 CTL Compact Track Loader, Parallel Lift, 2 Speed, A/C Enclosed Cab, Fitted with a 2014 P/No.426-6492 0.34m3 CAT Multipurpose 4in1 Bucket with Teeth. $48k+Gst Unit has been Serviced using Genuine CAT Filters, Unit has just been fitted with a new Set of Glow Plugs, Unit includes a Genuine CAT Operators & Maintenance Manual For the Moneth of August 2025 Unit will Include a Near New Set of HIMAC 1500Kg Pallet Forks

2012 CATERPILLAR 259B3 Series 3

Ex Council CAT 432F 4WD Backhoe Loader 4 Speed Power Shift, with only 3786hrs, Powered by ACERT C4.4 4 Cyl Cat Badged 4.4L Perkins Engine, Fitted with Hydraulic Power Assist Side Shift , Burst Valves on all Lift Cylinders, 16ft Extendahoe, Manual Rear Hitch, Air Suspensin Seat, ISO/SAE Selectable Pilot Control JoySticks, Fitted with Ride Control Option, A/C & Heated Cabin, Non Ad Blue, Battery Isolator, Amber Beacon,  Excellant Rubber All Round, $86k+Gst Includes, Operators & Maintenance Manual, Unit Will Include New Front Grill. New Grill Latch &  Front Bumper Stopers on LH & RHS of Grille - On Order from Westrac , One Owner Unit is straight from work from a Inland Southern NSW Shire Council. Unit in July Aug has just had New Paint and Decals.  Please see Photos of before and After  - This is of the Same Machine

Hydraulic System
Load-sensing, closed-center system.
Variable-flow, closed-center load-sensing system provides full
hydraulic force to cutting edges at all engine speeds. Provides low
fuel consumption and low effort controls.

2013 CATERPILLAR 432F BACKHOE Ride Control Power Side Shift

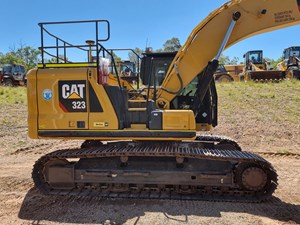

2018 CAT 323 Next Gen 23T 3D GPS Hydraulic Excavator, Fitted with DOHERTY Tilt Hitch, CAT Factory 3D System, Premium Recessed Emergancy Stops, Premium GME UHF, Keyless Pin Code Protected Push Button Start, Well Looked after Machine, Presents Immaculate, Original Paint on Machine except, 600mm AE GP Bucket, $208k+Gst, Unit fitted with Factory Surround Camera System, Unit includes remaining 500hrs CAT Factory Powertrain & Hydraulics Warrenty on top of Current 8041hrs Valid upto mid March 2025 (which ever occurs First - Conditions As Per Cat Factory PowerTrain & Hydraulics Warranty Terms & Conditions - Valid to CAT Dealer Australia Wide) Unit includes Operators & Maintence Manual. Please Note: This Unit is Made in Japan Additional Information: 14th Aug 2024 Unit has just had its EGR Valve Replaced on Warrenty Fitted by Westrac Mt Thorely NSW. 09 October, Unit has just had a New Rear Camera & New 4G/5G Data Link Upgrade fitted by Westrac. Bucket Packages Available at Discounted Rates with machinePurchase

2018 CATERPILLAR CAT 323 NEXT GEN 3D GPS MADE IN JAPAN Next Gen 3D GPS

2025 3.5T 1.6m3 ZHS Site Dumper 4WD Site Dumper, Fully Enclosed A/C & Heated Cab, Power Steering Full 180 degress Hydraulic Rotating Tiper Body Twin Dumper Cylinders, 36.8Kw / 49.35Hp 4 Cyl Diesel Engine, Auto Shuttle Forward & Reverse also with a 1st & 2nd Speed Auto Shuttle 265 Gear Box + also Has Unit a Manual High Range & Low Range Selector to give a Total of 4 Forward Speeds & 4 Reverse Speeds $24k+Gst Fitted with 8ea x LED Work Lights Front & Rear, Glass A/C & Heated Enclosed Cab with additional Aux Cooling Fan
Badged Rated Load Capacity 3500Kg
1.6m3 Cubic Meters Tipper, Fitted with Battery Isolator, LCD Reverse Camera, 2ea x Large Rear Revision Mirrors, Amber LED Flashing Beacon
4900mm L x 1850mm W x 2700mm H
Tare Weight 3200 Kg
Fitted with 4ea x 23.5 / 70-16 Size Tyres

2025 ZHS MACHINERY 35D 3.5T ZHS Site Dumper A/C Enclosed Cab 4Cyl Diesel

AMMANN AV110X 11T Double Smooth Drum Compactor, Open ROPS, 2,784hrs $45k + Gst. Unit has been fully Serviced. , Newly Repaired & Insulated Roof Canopy, New Cab Mounts. 4ea x New Cummins Injectors and new New Fuel lines Recently Fitted
POWERFUL PROPULSION
A unique propulsion system powers the Ammann AV 110 X Tier 2 Articulated
Tandem Roller, helping it efficiently deliver the weight and vibration necessary to
achieve optimum compaction results. Key to the propulsion system is the location of
the power train in the rear frame and in independent pumps for drive and vibration.
TECHNICAL SPECIFICATIONS
AV 110 X ARTICULATED TANDEM ROLLER
Tier 2
STANDARD EQUIPMENT
Open drivers platform with railing and protection against vandalism
Two amplitudes and two frequencies
Hydrostatic drive front and rear drums
Rotating and sliding operators station
Adjustable seat and steering column
Pressurized sprinkling system
Working lights front and rear
Scrapers
OPTIONAL EQUIPMENT
CE conformity kit
ROPS cab ventilated heated
ROPS protection frame on drivers platform
Sun canopy for open platform version
Air conditioning
Radio
Edge cutter
IR Thermometer
Additional working headlights
DIMENSIONS
A MACHINE LENGTH 4760 mm (187.5 in)
B WHEELBASE 3460 mm (136.3 in)
C MACHINE HEIGHT 3020 mm (118.9 in)
D MACHINE HEIGHT (REMOVED CAB/ROPS) 2350 mm (92.6 in)
E DRUM WIDTH 1700 mm (67 in)
F MACHINE WIDTH 1822 mm (71.8 in)
H GROUND CLEARANCE 310 mm (12.2 in)
I DRUM DIAMETER 1300 mm (51.2 in)
J DRUM SHELL THICKNESS 22 mm (0.9 in)
ENGINE
MANUFACTURER Cummins 4BT4.5-C99
POWER ACCORDING TO ISO 3046-1 74 kW (99 HP)
MAXIMUM TORQUE 414(305)/1600 Nm (ft lb)/rpm
ENGINE COMPLIES WITH EMISSION REGULATIONS EU Stage II, U.S. EPA Tier 2
MISCELLANEOUS
BRAKES OPERATING Hydrostatic
BRAKES PARKING Mechanical multiple-disc
BRAKES EMERGENCY Mechanical multiple-disc
FUEL TANK CAPACITY 210 l (55.5 gal)
VOLTAGE 12 V
COMPACTION FORCES
FREQUENCY I 45 Hz (2700 VPM)
FREQUENCY II 55 Hz (3300 VPM)
FREQUENCY ACE MIN. /MAX.
AMPLITUDE I 0.7 mm (0.028 in)
AMPLITUDE II 0.35 mm (0.014 in)
AMPLITUDE ACE MIN. /MAX.
CENTRIFUGAL FORCE I 110 kN
CENTRIFUGAL FORCE II 77/83 kN
CENTRIF. FORCE ACE MIN. /MAX.
WEIGHT & DRIVING CHARACTERISTICS
OPERATING WEIGHT 10400 kg (22930 Ib)
MAXIMUM WEIGHT 11190 kg (24670 Ib)
STATIC LINEAR LOAD OF FRONT DRUM 30.9 kg/cm (173 lb/in)
STATIC LINEAR LOAD OF REAR DRUM 30.3 kg/cm (169.7 lb/in)
MAX. TRANSPORT SPEED 12.8 km/h (8 MPH)
MAX. WORKING SPEED
CLIMBING ABILITY 30%
TURNING RADIUS INNER (EDGE) 4650 mm (183.1 in)
CRAB MODE 160 mm (6.3 in)

AMMANN AV110X

AMMANN AV16-2 1.6T Double Smooth Drum Roller Powered by YANMAR 3TNV76-N Diesel $20k+Gst Includes Operators & Maitenance Manual

2006 AMMANN AV16-2 Series 2

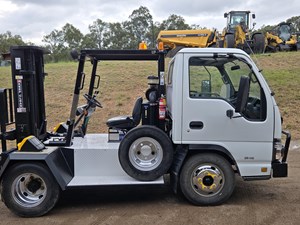

ISUZU NKR200 TMF Engineering 2.5T Mobile Fork Lift 2 Stage Mast 4.75m Lift. Rear Control, Very Tidy Unit, Truck 31,928kms Fork Lift at 457hrs of Operation, Flashing Beacons Also includes 3.5T Tow Hitch with RedArc ToePro Elite Brake Controller, Bull Bar, Light Bar, Fitted with Iron Man Winch & Wireless Remote (Not Connected) $42K+Gst Unit Will Include a NSW Blue Slip Inspection Report

2006 ISUZU NKR 200 N5 2.5T Fork Lift

ZEGA Down the Hole Hammer D335 DTH Drill RIG, Track Drive / Track Mounted, Powered by 3.9L 60Kw 4Cyl Turbo DCEC 4BTA3.9-C80-II CUMMINS Diesel Engine, Drill SMU/Tacho Unit  showing 347hrs.  Includes Spare Drill Rods, Connecting Hose And Accessories, Unit is fitted with Racks Containing 12ea x  1500mm Drill Rods mounted OnBoard and a further 11ea x 1500mm Rods on Pallet with Bull Hose and Tool Box Containing Spares ,Accessories & Drill Bits,

Package includes 2016 ZEGA SPD425S-10 Skid Mounted 425 cfm / 12m3/min 1MPA Rotary Screw Compressor Unit . ZEGA Screw Compressor SMU showing 331hrs.. Powered by110Kw 5.9L 6Cyl DCEC 6BT5.9-C150 CUMMINS Turbo Charged Diesel,

$50k+Gst Unit Comes with Donaldson Replacement Filters for both Engines, Includes English D335 Drill Parts Manual, Chinese (Non Translated) D335 Operation Manual and ZEGA Translated Generic Screw Compressor Operators Manual. Drill Rig 24v & Compressor 24v both units fitted with 2ea x New Century Batteries. Drill Fitted with New KANAMAX Dust Extraction Hose. Both Units Powered by Chinese CUMMINS DCEC Dongfen CUMMINS Eng Co. Ltd

2016 ZEGA D335

Ex Rail Trailer Mounted 8.6KVA 240Vac Commercial Grade Silenced Generator Powered by 3 Cyl Mitsubishi Diesel with only 1704 Hours,
Fitted with 10Kva 240v to 110vac  Transformer

$9,100+Gst Will include a New Start Battery

KVA: 8.6 Kva
Volts 240 Volts AC
Hz 50.
Phase: Single Phase

Distribution Box fitted with: Circuit Breakers, GPO, Isolation and Selector Switch
Aux Outlet: 120v


8.6KVA Silenced DIESEL Genset Includes:

1. Tandem Trailer, Standard 50mm Tow Hitch, Manual Override Brakes, Standard 7Pin Flat Trailer Plug  with Spare Tyre, (Unused) Trailer Bed Dimensions 2540mm Long x 1320mm Wide, Overall Trailer Length 4100mm. Fitted with Spare Jerry Can Holders, Genset has its own Build in Fuel Tank.

2. Distribution / Isolation / CB mounted in Standard Size Meter Box.

3. Cables including 28 meters x 10mm2 2 Core+Earth H/Duty Quality  Cable fitted with 32AMP Heavy Duty Plug and J Box,

4. Copper Earth Stake and Cable

5. 20m x of 6mm2 2Core+Earth Cabe fitted with H/Duty 32 Amp Male Weather Proof Plug at Generator End and Standard 15Amp Female Outlet Receptacle Weather Proof Plug at other End.

6. Solar Panel fitted with 12vdc Solar Panel to keep Generator Start Battery Topped Up.

7. Unit also fitted with 10Kva 240 /120v Transformer mounted in a H/Duty Galvanized Enclosure , Can be removed or Isolated.

Transport Can be arranged at Reasonable Rates Nation Wide

SDMO Gensets are Made in FRANCE and are Owned by KOHLER, KOHLER SDMO are one of the Top Global Manufactures of Generators,
SDMO KOHLER are Supported by CAPS Australia,

2007 SDMO MITSUBISHI T9KM -4 240V 8.6 KVA SINGLE PHASE + INCLUDES MODULAR 10KVA 110V TRANSFORMER FOR RAIL POWER SUPPLY Series 4
