MineQuip Automation PTY LTD

CATERPILLAR THP18S 1800MM Basket Platform Arrangement Suit CAT TELEHANDLER, Suit Modesl TH414 TH514 TH417.
$12k+Gst Unit includes 2ea x Fall Prevention Safety Harness's .

2010 CATERPILLAR THP18S Attachment

AMMANN AV110X 11T Double Smooth Drum Compactor, Open ROPS, 2,784hrs $49k + Gst. Unit has been fully Serviced. , Newly Repaired & Insulated Roof Canopy, New Cab Mounts. 4ea x New Cummins Injectors and new New Fuel lines Recently Fitted
POWERFUL PROPULSION
A unique propulsion system powers the Ammann AV 110 X Tier 2 Articulated
Tandem Roller, helping it efficiently deliver the weight and vibration necessary to
achieve optimum compaction results. Key to the propulsion system is the location of
the power train in the rear frame and in independent pumps for drive and vibration.
TECHNICAL SPECIFICATIONS
AV 110 X ARTICULATED TANDEM ROLLER
Tier 2
STANDARD EQUIPMENT
Open drivers platform with railing and protection against vandalism
Two amplitudes and two frequencies
Hydrostatic drive front and rear drums
Rotating and sliding operators station
Adjustable seat and steering column
Pressurized sprinkling system
Working lights front and rear
Scrapers
OPTIONAL EQUIPMENT
CE conformity kit
ROPS cab ventilated heated
ROPS protection frame on drivers platform
Sun canopy for open platform version
Air conditioning
Radio
Edge cutter
IR Thermometer
Additional working headlights
DIMENSIONS
A MACHINE LENGTH 4760 mm (187.5 in)
B WHEELBASE 3460 mm (136.3 in)
C MACHINE HEIGHT 3020 mm (118.9 in)
D MACHINE HEIGHT (REMOVED CAB/ROPS) 2350 mm (92.6 in)
E DRUM WIDTH 1700 mm (67 in)
F MACHINE WIDTH 1822 mm (71.8 in)
H GROUND CLEARANCE 310 mm (12.2 in)
I DRUM DIAMETER 1300 mm (51.2 in)
J DRUM SHELL THICKNESS 22 mm (0.9 in)
ENGINE
MANUFACTURER Cummins 4BT4.5-C99
POWER ACCORDING TO ISO 3046-1 74 kW (99 HP)
MAXIMUM TORQUE 414(305)/1600 Nm (ft lb)/rpm
ENGINE COMPLIES WITH EMISSION REGULATIONS EU Stage II, U.S. EPA Tier 2
MISCELLANEOUS
BRAKES OPERATING Hydrostatic
BRAKES PARKING Mechanical multiple-disc
BRAKES EMERGENCY Mechanical multiple-disc
FUEL TANK CAPACITY 210 l (55.5 gal)
VOLTAGE 12 V
COMPACTION FORCES
FREQUENCY I 45 Hz (2700 VPM)
FREQUENCY II 55 Hz (3300 VPM)
FREQUENCY ACE MIN. /MAX.
AMPLITUDE I 0.7 mm (0.028 in)
AMPLITUDE II 0.35 mm (0.014 in)
AMPLITUDE ACE MIN. /MAX.
CENTRIFUGAL FORCE I 110 kN
CENTRIFUGAL FORCE II 77/83 kN
CENTRIF. FORCE ACE MIN. /MAX.
WEIGHT & DRIVING CHARACTERISTICS
OPERATING WEIGHT 10400 kg (22930 Ib)
MAXIMUM WEIGHT 11190 kg (24670 Ib)
STATIC LINEAR LOAD OF FRONT DRUM 30.9 kg/cm (173 lb/in)
STATIC LINEAR LOAD OF REAR DRUM 30.3 kg/cm (169.7 lb/in)
MAX. TRANSPORT SPEED 12.8 km/h (8 MPH)
MAX. WORKING SPEED
CLIMBING ABILITY 30%
TURNING RADIUS INNER (EDGE) 4650 mm (183.1 in)
CRAB MODE 160 mm (6.3 in)

AMMANN AV110X

CAT CB334 D 3.8T 1300mm Wide Smooth Drum Roller, Powered by Caterpillar 3014 4Cyl 42.5Hp Liquid Cooled Diesel Engine. $30k+Gst Unit has been Serviced with Genuine CAT Filter Service Kit, Unit includes Genuine CAT Operators & Maintenace Manual,
Other Rollers Available, AMMANN AV16-2 1.6T, DYNAPAC CC102 2350Kg, AMMANN AV110X 11T Double Smooth Drum

2003 CATERPILLAR CB334D

Ex Rail Trailer Mounted 8.6KVA 240Vac Commercial Grade Silenced Generator Powered by 3 Cyl Mitsubishi Diesel with only 1704 Hours,
Fitted with 10Kva 240v to 110vac  Transformer

$9,100+Gst Will include a New Start Battery

KVA: 8.6 Kva
Volts 240 Volts AC
Hz 50.
Phase: Single Phase

Distribution Box fitted with: Circuit Breakers, GPO, Isolation and Selector Switch
Aux Outlet: 120v


8.6KVA Silenced DIESEL Genset Includes:

1. Tandem Trailer, Standard 50mm Tow Hitch, Manual Override Brakes, Standard 7Pin Flat Trailer Plug  with Spare Tyre, (Unused) Trailer Bed Dimensions 2540mm Long x 1320mm Wide, Overall Trailer Length 4100mm. Fitted with Spare Jerry Can Holders, Genset has its own Build in Fuel Tank.

2. Distribution / Isolation / CB mounted in Standard Size Meter Box.

3. Cables including 28 meters x 10mm2 2 Core+Earth H/Duty Quality  Cable fitted with 32AMP Heavy Duty Plug and J Box,

4. Copper Earth Stake and Cable

5. 20m x of 6mm2 2Core+Earth Cabe fitted with H/Duty 32 Amp Male Weather Proof Plug at Generator End and Standard 15Amp Female Outlet Receptacle Weather Proof Plug at other End.

6. Solar Panel fitted with 12vdc Solar Panel to keep Generator Start Battery Topped Up.

7. Unit also fitted with 10Kva 240 /120v Transformer mounted in a H/Duty Galvanized Enclosure , Can be removed or Isolated.

Transport Can be arranged at Reasonable Rates Nation Wide

SDMO Gensets are Made in FRANCE and are Owned by KOHLER, KOHLER SDMO are one of the Top Global Manufactures of Generators,
SDMO KOHLER are Supported by CAPS Australia,

SDMO MITSUBISHI T9KM -4 240V 8.6 KVA SINGLE PHASE + INCLUDES MODULAR 10KVA 110V TRANSFORMER FOR RAIL POWER SUPPLY Series 4

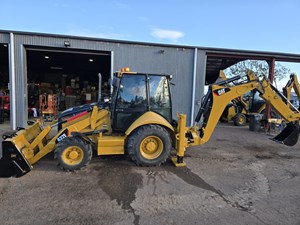

CAT 432E Premier Pilot Control Front Wheel Assist Backhoe Loader with Extendahoe Power Hydraulic Side Shift , Front CAT 4in1 MultiPurpose Bucket , Air Suspension Seat, ISO SAE Selectable Joystick Patten, New Paint & Decals, $54k+Gst Unit will be either Supplier Fully Serviced With New Engine Oil & Final Drive Oils or with a Genuine CAT Filter Service Kit, Unit is fitted with a CAT Factory Spring Lock Coupler & CAT 600mm GP Bucket with Teeth
Other Attachments Available at Discounted Rates with machine Package
Pilot Operated Joystick Controls
Standard on the 432E, Pilot controls reduce fatigue, improve visibility and increase versatility.
Joystick Controls
Excavator style joystick controls provide smooth modulation
and are ergonomically designed for low effort control and
operator comfort. The location of the controls naturally
position the operator comfortably into the back of the seat.
The loader joystick features optional multi function controls
and the RH hoe joystick features a thumb operated extendable
stick control, eliminating pedals on the floor.
Excavator Control Pattern Changer
The 432E has an in-cab backhoe pattern changer as standard,
allowing operators to choose between either ISO, or SAE
control patterns.
This is located within reach of the operator, ensuring the 432E
will suit either type of backhoe operation.
Stabilizer Controls
Pilot operated, remote stabilizer controls are available with
optional Auto-Up feature, reducing cycle times and improving
visibility to the rear.
Multi Position Joystick Pods
The joysticks are pod-mounted, allowing two locked positions,
fore and aft for the controls. This allows the operator to move
forward when excavating close to the rear of the machine,
and have a clear view to the trench.
Visibility With no rear console impeding vision, the operator has an
unobstructed view to the working area.
Unit Standard Features Fully enclosed, hydraulic, multiple discs Inboard oil immersed, hydraulically actuated multiple Kevlar discs on final drive input shaft. Completely enclosed and sealed. Self adjusting. Foot operated dual pedals can be interlocked for roading. Parking/secondary brakes areindependent of the service brakes.Parking brake is mechanically applied through a hand lever in the right hand side console. Meets ISO 3450:1996 r

2007 CATERPILLAR 432E PREMIER Premier with Pilot Controls with Power Hydraulic Side Shift

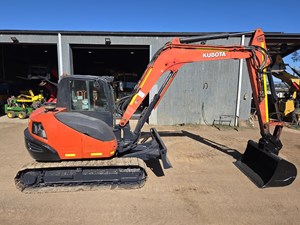

Used KUBOTA KX080-3S 8.3T Excavator with Push Blade & Swing Boom Unit Showing 7842 hours, Unit does have some wear However is a Strong Machine $42k+Gst Includes Mud Bucket, Machine Supplied Serviced with Set of New Filters fitted, Other Attachments available at Discounted prices with Machine Package

KUB0TA KX080-3S

2015 JCB 525-60 Hi Viz 2.5T 6m TELEHANDLER, Fitted with 55Kw 74Hp 4 Cyl Turbo Inter Cooled DIESEL JCB/KOHLER Engine 310Nm of Torque at 1500Rpm , Auxillary Hydraulics, A/C Cab, Electric Finger Paddle P/Brake, $53k+Gst Fitted with a New Set of HIMAC 2.5T Pallet Forks. Unit Runs Very Well & Quick around the Yard , Unit will Include 2ea x New Front Tyres. Unit Weighs 5,230Kg
JCB 525-60 Hi Viz Park Brake is SAHR (Spring Apply Hydraulic Release Park brake self adjusting, oil immersed in-board multi disc type mounted on front axle operated by in-cab switch

2015 JCB 525-60 Hi Viz

2018 CAT 323 Next Gen 23T 3D GPS Hydraulic Excavator, Fitted with DOHERTY Tilt Hitch, CAT Factory 3D System, Premium Recessed Emergancy Stops, Premium GME UHF, Keyless Pin Code Protected Push Button Start, Well Looked after Machine, Presents Immaculate, Original Paint on Machine except, 600mm AE GP Bucket, $208k+Gst, Unit fitted with Factory Surround Camera System, Unit includes remaining 500hrs CAT Factory Powertrain & Hydraulics Warrenty on top of Current 8041hrs Valid upto mid March 2025 (which ever occurs First - Conditions As Per Cat Factory PowerTrain & Hydraulics Warranty Terms & Conditions - Valid to CAT Dealer Australia Wide) Unit includes Operators & Maintence Manual. Please Note: This Unit is Made in Japan Additional Information: 14th Aug 2024 Unit has just had its EGR Valve Replaced on Warrenty Fitted by Westrac Mt Thorely NSW. 09 October, Unit has just had a New Rear Camera & New 4G/5G Data Link Upgrade fitted by Westrac. Bucket Packages Available at Discounted Rates with machinePurchase

2018 CATERPILLAR CAT 323 NEXT GEN 3D GPS MADE IN JAPAN Next Gen 3D GPS

2025 3.5T 1.6m3 ZHS Site Dumper 4WD Site Dumper, Fully Enclosed A/C & Heated Cab, Power Steering Full 180 degress Hydraulic Rotating Tiper Body Twin Dumper Cylinders, 36.8Kw / 49.35Hp 4 Cyl Diesel Engine, Auto Shuttle Forward & Reverse also with a 1st & 2nd Speed Auto Shuttle 265 Gear Box + also Has Unit a Manual High Range & Low Range Selector to give a Total of 4 Forward Speeds & 4 Reverse Speeds $24k+Gst Fitted with 8ea x LED Work Lights Front & Rear, Glass A/C & Heated Enclosed Cab with additional Aux Cooling Fan
Badged Rated Load Capacity 3500Kg
1.6m3 Cubic Meters Tipper, Fitted with Battery Isolator, LCD Reverse Camera, 2ea x Large Rear Revision Mirrors, Amber LED Flashing Beacon
4900mm L x 1850mm W x 2700mm H
Tare Weight 3200 Kg
Fitted with 4ea x 23.5 / 70-16 Size Tyres

2025 ZHS MACHINERY 35D 3.5T ZHS Site Dumper A/C Enclosed Cab 4Cyl Diesel

KOMATSU HD465-3 OHT Water Truck, Good Tyres All Around, New Engine Air Filter Assemblies, New Engine Control Solenoid, New Fuel Lines to & From Secondary Fuel Filters, CANVAS Seat Covers, A/C Cab, SMU Showing 19,666 hrs. Fitted with Park Brake & Body Raised Warning Alarms $68k+Gst

KOMATSU HD465-3

TANDEM PLANT TRAILER with Twin Ramps to Allow Loading and 2nd Set of Loading up to Front Primer if suitable Prime Mover used ,. GVM 3350Kg Tare 1200Kg Twn Electric Brakes, 12v/24vDc NARVA LED Lights , Break Away, Standard 7 Pin Flat Trailer Plug. & 50 Amp Anderson Plug for Breakaway , Includes Spare Wheel, Unit recently Painted , Pleae Note due to Length of Ramps Confige Not suitsble for Standard Seden Car Transport. Would Suit Small Plant and Equipment , $11.4k+Gst Unit will come with Blue Slip

2010 TUCKER 00CAR Plant Trailer

FS-Curtis FAC-52BC 185cfm Ac with After Cooler
Free Air Delivery 5.2 m³/min (185 cfm)
Rated Pressure7 bar (102 psi)
Maximum Pressure9 bar (130 psi)
AftercoolerAir-to-Air
EngineYanmar 4TNV88-BXDHKSR1
Fuel Consumption9.0 L/h @ 100% Load
Noise Level @ 7 m68 dB(A)
Weight (Wet)865 kg
Product CodeFS FAC-52BC
$32,044 + Gst
Plus Freight
2nd hand units also available
The FAC Series from FS-Curtis comprises a range of heavy duty, portable
diesel air compressors offering superior efficiency, quality and reliability in
an environmentally responsible manner. There is a wide selection of models
including box and trailer type configurations with continuous duty outputs from
1.84 to 34 m3
/min (65 to 1,200 cfm) and rated pressures from 7 to 24.5 bar
(100 to 355 psi). A factory installed aftercooler option is available for most of
the 7 bar compressors.
All models are based on well proven designs that are market leaders in
their home territory of Japan and widely distributed throughout the rest of
the world. Thousands of these units are already working under the most
demanding conditions in construction, mining and industrial applications. With
a comprehensive array of standard features, the FAC Series compressors
represent outstanding value for money in capital investment terms. And their
high levels of fuel efficiency and
reliability deliver whole-of-life
operating costs that are amongst
the lowest available.
The entire range of FAC Series
compressors is manufactured
in a state-of-the-art Japanese
factory that is equipped with the latest manufacturing technology including
robotic machining centres. Dual ISO 9001 and ISO 14001 accreditation
acknowledges the plants commitment to worlds best practice in both
quality and environmental management. Most significantly, the heart of each
compressor its rotary screw air end is
manufactured in this same factory to
ensure perfect compatibility with each
compressor model.
FS-Curtis is a member of the global
Fusheng group of companies, one of
the worlds largest manufacturers of
air compressors with over 165 years of
experience. Fusheng compressors have
been sold in Australia for over five decades
and continue to gain in popularity because of their legendary reputation for
outstanding performance and reliability

2021 FS CURTIS FAC-52BC 185cfm 5.2m3/min Made in Japan $ POA Ready Stock
